Steel cord

INQUIRY

Product description

FAQ

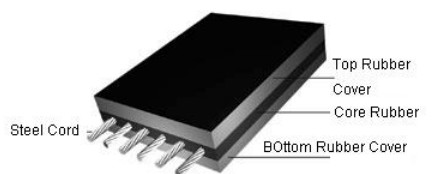

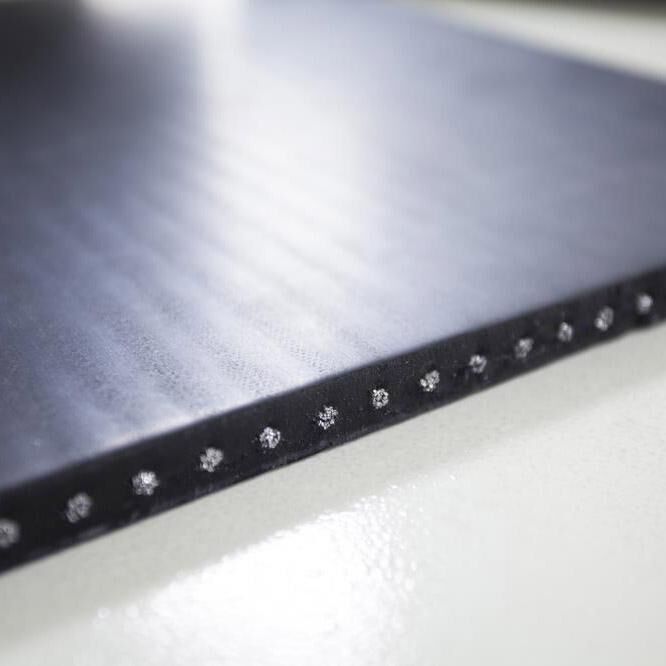

General Steel Cord Conveyer Belt

It uses the new type steel cord as the tear resistant element. It has high tension strength, small elongation, excellent troughability and high flexibility, and it is applicable for the conveyance of materials with long distance, large freight volume and high speed.

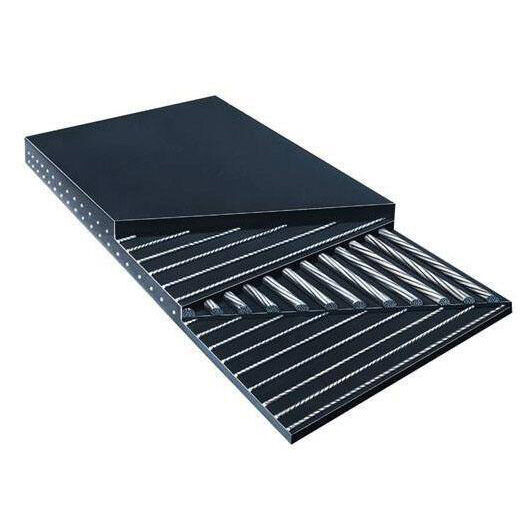

Tear Resistant Steel Cord Conveyor Belt

On one side or two sides vertical that is perpendicular to the lengthways steel cable, evenly lay the reinforcing layer of the steel cable, steel cord, fabric, etc.It has excellent impact and tearing resistance performance.

Technical Data

Technical Data	Belt Strength
Technical Data	ST/S 630	ST/S 800	ST/S 1000	ST/S 1250	ST/S 1600	ST/S 2000	ST/S 2500	ST/S 2800	ST/S 3150	ST/S 3500	ST/S 4000	ST/S 4500	ST/S 5000	ST/S 5400
Longitudinal Tensile Strength (N/mm)	630	800	1000	1250	1600	2000	2500	2800	3150	3500	4000	4500	5000	5400
Max Nominal Dia. of Steel Cord (mm)	3.0	3.5	4.0	4.5	5.0	6.0	7.2	7.5	8.1	8.6	8.9	9.7	10.9	11.3
Steel Cord Pitch (mm)	10 ±1.5	10 ±1.5	12 ±1.5	12 ±1.5	12 ±1.5	12 ±1.5	15 ±1.5	15 ±1.5	15 ±1.5	15 ±1.5	15 ±1.5	16 ±1.5	17 ±1.5	17 ±1.5
Thickness of Top Cover (mm)	5	5	6	6	6	6	8	8	8	8	8	8	8.5	9
Thickness of Bottom Cover (mm)	5	5	6	6	6	6	8	8	8	8	8	8	8.5	9
Width (mm)	Numbers of Steel Cord
800	75	75	63	63	63	63	50	50	50	50
1000	95	95	79	79	79	79	64	64	64	64	64	59	55	55
1200	113	113	94	94	94	94	76	76	76	76	76	71	66	66
1400	133	133	111	111	111	111	89	89	89	89	89	84	78	78
1600	151	151	126	126	126	126	101	101	101	101	101	96	90	90
1800	171	171	143	143	143	143	114	114	114	114	114	109	102	102
2000	196	196	159	159	159	159	128	128	128	128	128	121	113	113
2200	216	216	176	176	176	176	141	141	141	141	141	134	125	125
The Recommended Minimum Pulley Diameter
ST Belt Type	ST/S 630	ST/S 800	ST/S 1000	ST/S 1250	ST/S 1600	ST/S 2000	ST/S 2500	ST/S 2800	ST/S 3150	ST/S 3500	ST/S 4000	ST/S 4500	ST/S 5000	ST/S 5400
Minimum Pulley Diameter (mm)	500	500	630	800	1000	1000	1250	1250	1400	1600	1600	1600	1800	1800

Q1. Where is your factory ?

A1: Our company’s processing center is located in Hebei, China.Which is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.

Q2. How do you control quality ?

A2: First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ; If the sample can reach to requirement , the client can sign the contract with our company;Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other seamless lead product companies.

Q4. How about the delivery time ?

A4: It is based on the order, After 15 days of shipment , we will send the documents of customs clearance to you ;After get the cargo , please give feedback to us

Q5. Can i have free samples?

A5: We can offer samples for free, but the courier cost shall be payed by new clients.

Q6. How to order?

A6: Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book Space → Balance/Deliver → Further.
