Sidewall
Product description
FAQ

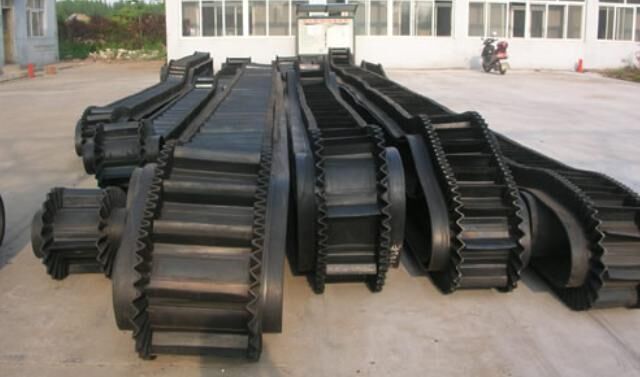

Sidewall conveyor belt Always works together with the corrugated transport system, normally the angle is more than 30o, it also could work together with the common use belt conveyor for the horizontal and short distance transportation (No clapboard generally).


Bandwidth B of base

sidewall high H

cleat high H1

The wave bottom wide B1

Effective bandwidth B2

Empty wide B3

Type of cleat

300

40

35

25

180

35

TC

60

55

50

120

40

80

75

400

60

55

50

180

60

TC

80

75

100

90

500

80

75

50

250

75

TC

100

90

120

110

650

100

90

50

350

100

TC

120

110

160

140

75

300

800

120

110

50

460

120

TC

160

140

75

410

200

180

1000

160

140

75

550

150

TC

200

180

240

220

1200

160

140

75

690

180

TC

200

180

240

220

300

260

100

640

1400

200

180

75

830

210

TC

240

220

300

260

100

780

400

360

Corrugated Sidewall Conveyor Belt Structure:

1.Base belt

Carcass: EP, NN, ST

Base belt width : 400- 1400mm


Corrugated Sidewall Conveyor Belt Sidewall:

Type: Light, Medium, Heavy, Extra heavy.

Hight: 40-400(mm)

Width: 35-110(mm)

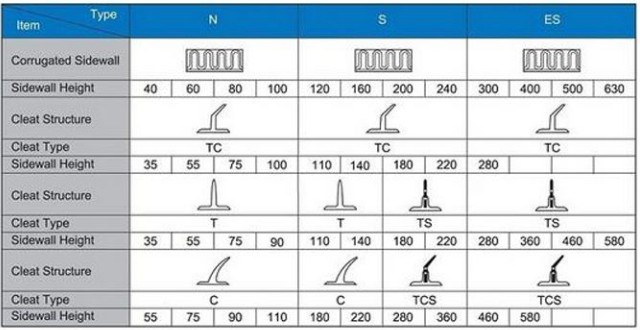

Corrugated Sidewall Conveyor Belt Cleat:

Type: T,TC

Hight: 35-360(mm)

Width: 55-230(mm)


Q1. Where is your factory ?

A1: Our company’s processing center is located in Hebei, China.Which is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.



Q2. How do you control quality ?

A2: First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ; If the sample can reach to requirement , the client can sign the contract with our company;Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;



Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other seamless lead product companies.



Q4. How about the delivery time ?

A4: It is based on the order, After 15 days of shipment , we will send the documents of customs clearance to you ;After get the cargo , please give feedback to us



Q5. Can i have free samples?

A5: We can offer samples for free, but the courier cost shall be payed by new clients.



Q6. How to order?

A6: Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book Space → Balance/Deliver → Further.
