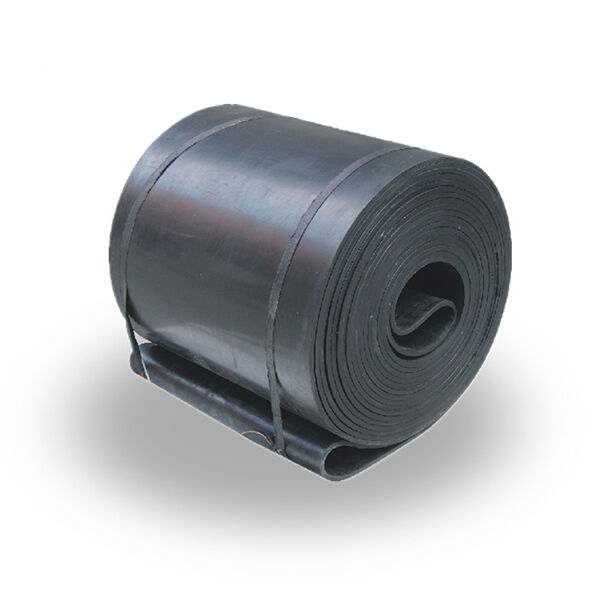

Nylon conveyor belt

Nylon is one of the best quality synthetic fibers the rubber industry use nowadays.

INQUIRY

Product description

FAQ

Nylon is one of the best quality synthetic fibers the rubber industry use nowadays. The nylon canvas is woven by nylon fibers both in warp and in weft, it is the most widely used fabric in rubber industry,and its outstanding merits are its high abrasion resistance,high tensile strength and good fatigue resistance.Conveyor belts with nylon canvas inside have the characteristics of thin belt body ,high tensile strength,good shock resistance,good troughability,high adhesion between plies,splendid flexibility and long working life.Nylon conveyor belts are suitable for medium,long-distance and heavy-load transportation of materials,widely used in mining ,metallurgical industry and architectural industry,ports and etc...

Specification and techical data of multi-ply nylon conveyor belt:
Fabric type	Fabricspecs	Ply thickness	(N/mm) single fabric strength	(mm)Cover thickness		Widtth mm	Length m
Fabric type	Fabricspecs	(mm/P)		Upper	Lower	Widtth mm	Length m
Nylon (NN)	NN-100	0.7	100	1.5-8	1-4.5	300-1800	20-300
	NN-125	0.75	125
	NN-150	0.8	150
	NN-200	0.9	200
	NN-250	1.1	250
	NN-300	1.25	300
	NN-350	1.35	350
	NN-400	1.7	400
	NN-500	1.8	500

Adhesion and elongation of the belt:
Belt	Adhesive strdngth			Elongation
carcass	Between plies	N/mm Between rubber and carcass		Longitudinal elongation at break	Longitudinal elongation at reference load
	N/mm	Rubber thickness	Rubber thickness	%>=	%<=
		<=1.5mm	>1.5mm
Nylon canvas	>=4.50	>=3.2	>=3.5	10	4

Cover properties of the belts:
Cover grade	Tensile strength		Elongation	Abrasion	Change Rate of tensile strength and elongation after aging
	>=		>=	<=	Change Rate of tensile strength and elongation after aging
	Mpa	kgf/cm2	%	mm3	%
Heavy(H)	24	240	450	120	-25~+25
Medium(M)	18	180	400	100	-25~+25
Light(L)	15	150	350	200	-30~+30

Q1. Where is your factory ?

A1: Our company’s processing center is located in Hebei, China.Which is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.

Q2. How do you control quality ?

A2: First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ; If the sample can reach to requirement , the client can sign the contract with our company;Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other seamless lead product companies.

Q4. How about the delivery time ?

A4: It is based on the order, After 15 days of shipment , we will send the documents of customs clearance to you ;After get the cargo , please give feedback to us

Q5. Can i have free samples?

A5: We can offer samples for free, but the courier cost shall be payed by new clients.

Q6. How to order?

A6: Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book Space → Balance/Deliver → Further.
