Product description

FAQ

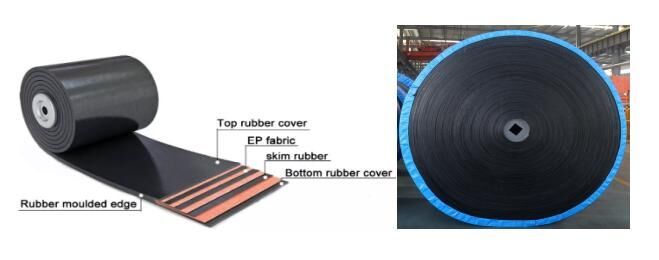

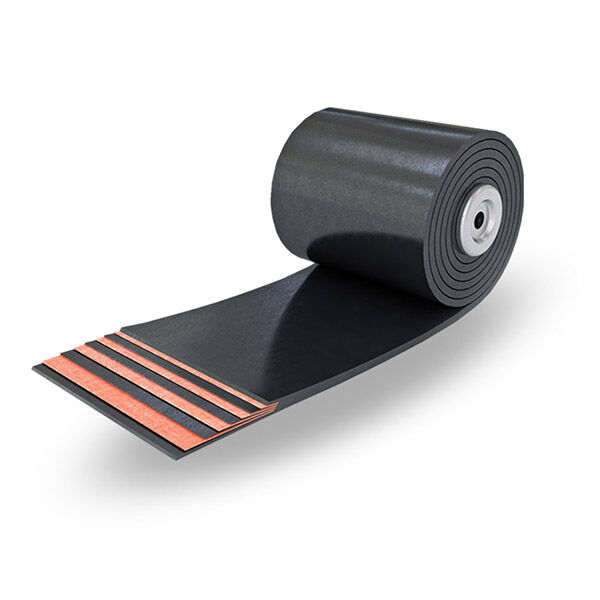

Polyester conveyor belts,also called EP conveyor belts,whose tension resistant body is canvas woven by polyester in warp and nylon-66 in weft.The belts have the characteristics of low elongation in warp and good troughability in weft,good water resistance,good wet strength,no mould,suitable for medium,long-distance and heavy-load transportation of materials.Because of the high initial modulus of polyester,the belts can choose a relative low safety factor.

Fabric type	Fabric	Ply thickness (mm/P)	(N/mm) single fabric strength	Cover thickness (mm)		Width	Length
Fabric type	specs	Ply thickness (mm/P)		Upper	Lower	mm	m
Polyester	EP-100	0.8	100	2.0~8	0~4.5	400-2000	20-300
(EP)	EP-125	0.85	125
	EP-150	0.9	150
	EP-160	0.9	160
	EP-200	1.05	200
	EP-250	1.25	250
	EP-300	1.35	300
	EP-350	1.5	350
	EP-400	1.8	400
	EP-500	2	500

Adhesion and elongation of the belt:
Belt		Adhesive strdngth						Elongation
carcass		Between plies		N/mm Between rubber and carcass				Longitudinal elongation at break		Longitudinal elongation at reference load
		N/mm		Rubber thickness		Rubber thickness		%>=		%<=
				<=1.5mm		>1.5mm
EPcanvas		>=4.50		>=3.2		>=3.5		10		4
Cover properties of the belts:
Cover grade	Tensile strength				Elongation		Abrasion		Change Rate of tensile strength and elongation after aging
	>=				>=		<=
	Mpa		kgf/cm2		%		mm3		%
Heavy(H)	24		240		450		120		-25~+25
Medium(M)	18		180		400		100		-25~+25
Light(L)	15		150		350		200		-30~+30

Q1. Where is your factory ?

A1: Our company’s processing center is located in Hebei, China.Which is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.

Q2. How do you control quality ?

A2: First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ; If the sample can reach to requirement , the client can sign the contract with our company;Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other seamless lead product companies.

Q4. How about the delivery time ?

A4: It is based on the order, After 15 days of shipment , we will send the documents of customs clearance to you ;After get the cargo , please give feedback to us

Q5. Can i have free samples?

A5: We can offer samples for free, but the courier cost shall be payed by new clients.

Q6. How to order?

A6: Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book Space → Balance/Deliver → Further.
