1.Brief Introduction

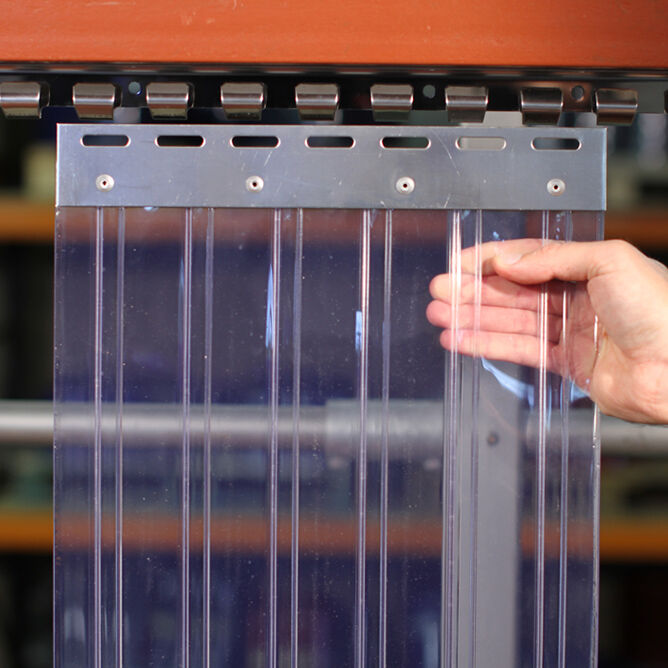

This type Suspension hard ward is most popular type of hanging system. The stainless steel Hanging Rails are fixed onto the underside or facing side of the door frame / beam support. We recommend this system for light industrial applications where there is manual pallet movement & occasional fork lift trucks traffic etc.

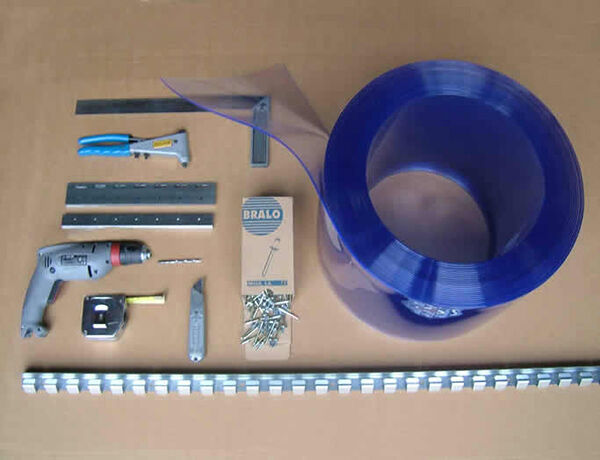

2.How to install the PVC strip curtain?
1) Cutting
Measure the size of door and cut the PVC strip curtain accordingly. Make sure the angle is 90 degree; Be careful with the cutter
2) Punch hole
a) Pushing holes in one side of PVC strip curtain
b) 200mm width door curtain need 3 holes
c) 300mm width door curtain need 4 holes

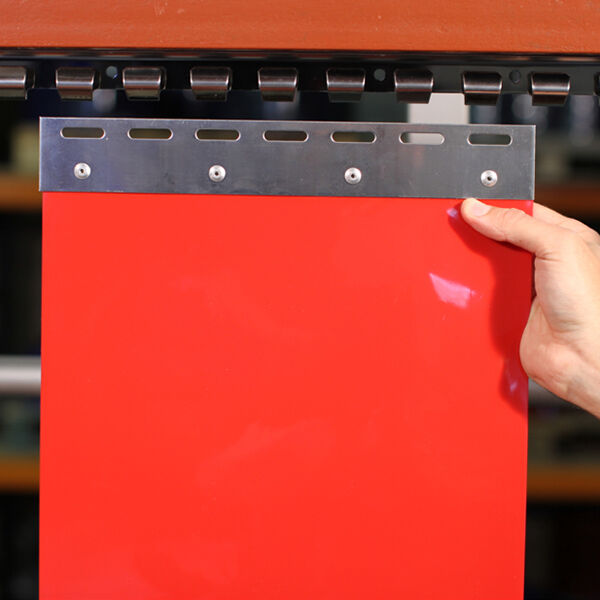

3) Install holders
a) Butt holders to the PVC strip with Screw.
b) Make sure the angle between strip and holders is 90 degree
a) Choice the best tool to punch hole according to the material of wall
b) If the hangers need to cut for special use, make sure you have remove the
flash before

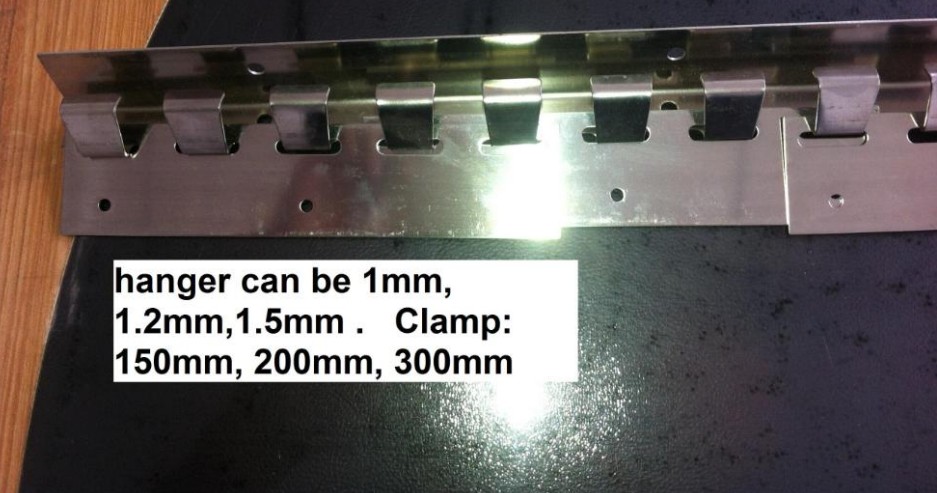

4) Standard Sizes
Hanger size:
Thickness: 0.8mm, 1mm, 1.2mm, 1.5mm
Size: 1m, 1.2m , 1.5m .....
Clamps sizes:
Thickness: 0.8mm, 1mm, 1.2mm, 1.5mm
Size: 100mm, 150mm, 200mm, 300mm, 400mm...
Q1. Where is your factory ?
A1: Our company’s processing center is located in Hebei, China.Which is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.
Q2. How do you control quality ?
A2: First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ; If the sample can reach to requirement , the client can sign the contract with our company;Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other seamless lead product companies.
Q4. How about the delivery time ?
A4: It is based on the order, After 15 days of shipment , we will send the documents of customs clearance to you ;After get the cargo , please give feedback to us
Q5. Can i have free samples?
A5: We can offer samples for free, but the courier cost shall be payed by new clients.
Q6. How to order?
A6: Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book Space → Balance/Deliver → Further.
